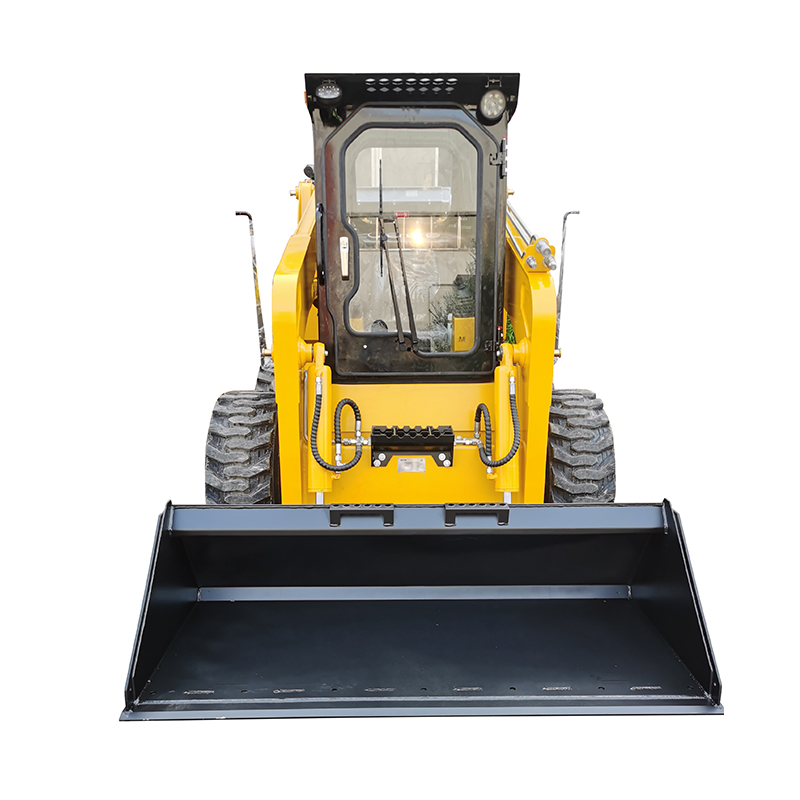

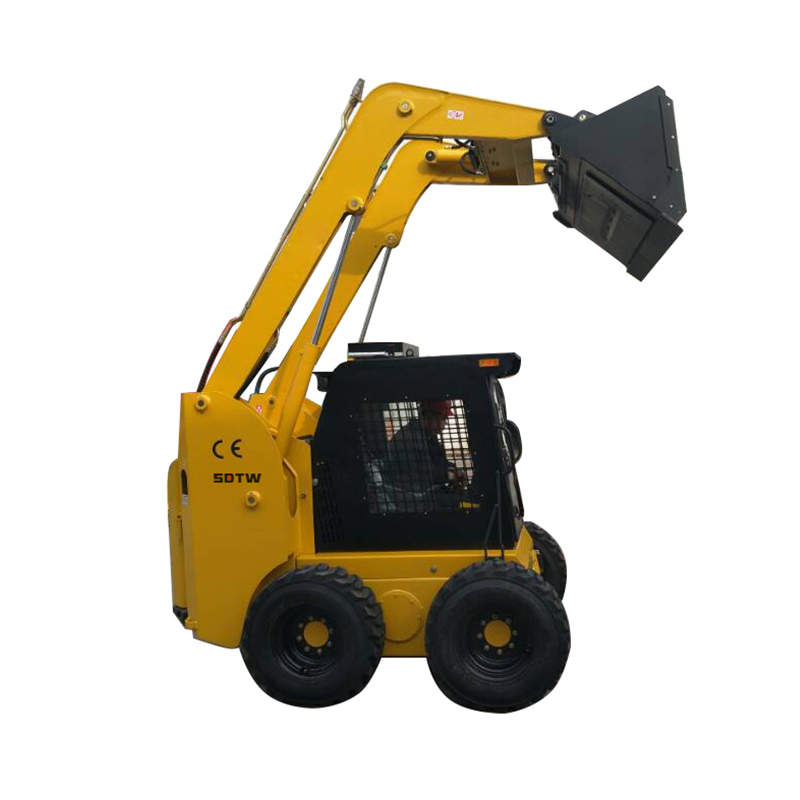

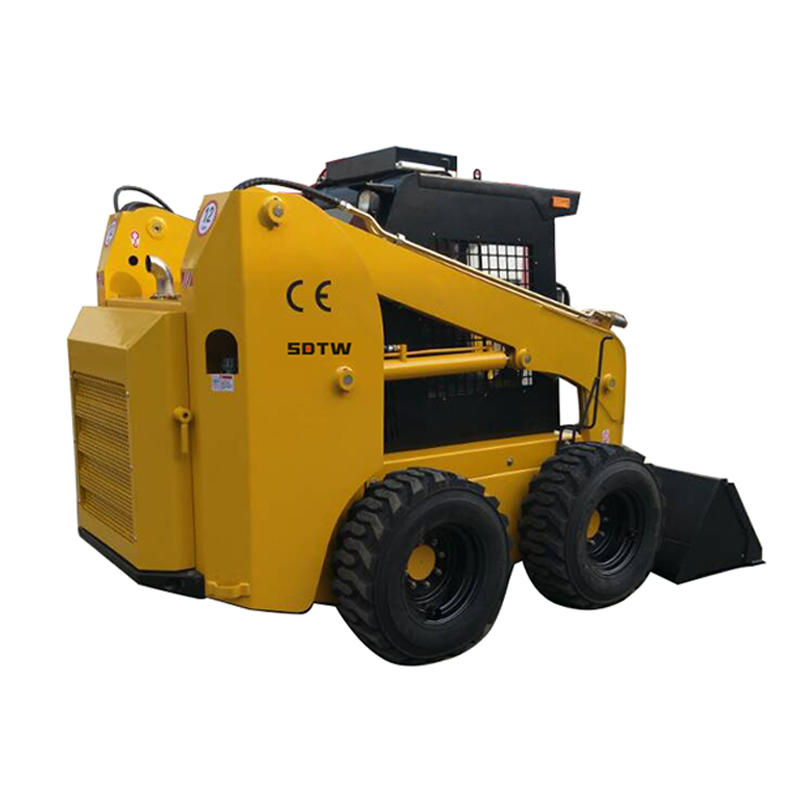

TWS140 Wheel Skid Steer Loader
Main specification：
1. Weichai 140hp /Cummins diesel engine 125 hp 2. Germany Rexroth hydraulic pump
3. Germany double speed Germany Rexroth motor 4. hydraulic control system (Joystick)
5. Luxury close cabin with AC 6. hydraulic brake
7. hydraulic self-leveling system 8. bobcat type quick coupler
9. high flow output for option 10 Italy Bondioli & Pavesi main valves
11. Italy pilot valve
Model | TWS140 |
Specifications | |
Rated operating capacity(kg) | 1800 |
Tipping load(kg) | 3600 |
Bucket capacity(m3) | 0.55-0.7 |
Operating weight(kg) | 3900 |
Max. travel speed(km/h) | 12 |
Hydraulic pump flow(L/min) | 80 /140 |
Fuel tank capacity(L) | 90 |
Tires | 12/16.5NHS |
Overall dimensions(mm) | 3580×1880×2160 |
Dimensions | |
Height at maximum extension(mm) | 4070 |
Height to bucket hinge pin(mm) | 3150 |
Width with bucket(mm) | 2030 |
Track width(mm) | 1500 |
Wheelbase(mm) | 1185 |
Ground clearance(mm) | 260 |
Dump angle | 40° |
Dumping height(mm) | 2450 |
Maximum reach(mm) | 710 |
Rollback at ground | 26° |
Angle of departure | 20° |
Engine | |
Maker/Model | WEICHAI WP4.1G140E301 |
Net power | 140 hp /2300rpm |
Type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
Displacement(L) | 4 L / 3.9 L |
Standard | |
Standard bucket | Yes |
Enclosed operator cab | Yes |
Hydraulic joystick controls | Yes |
Auxiliary hydraulic couplers | Yes |
Optional | |
Preheat starting assist system for extreme cold weather | |
High-flow hydraulic system | |
Cab fitted with a heater as standard | |
Air conditioner |
