微型挖掘机
Operation Weight | KG | 2000 |
Bucket Capacity | m3 | 0.07 |
Max. Digging Radius | mm | 4040 |
Max. Digging Depth | mm | 2400 |
Max. Digging Height | mm | 3700 |
Max. Dumping Height | mm | 2440 |
Max. Dozer Cutting | mm | 270 |
Max. Dozer Lifting | mm | 240 |
Boom Deflexion (Left/Right) | ° | 75/45 |
Tail Swing Radius | mm | 650 |
Model | Kubota / Perkins 14.2kW/2200rpm |
Type | Direct injection, water cooled, natural intake |
No. of cylinder | 3 |
Main Performance
Swing Speed | r/min | 0-9 |
Traveling Speed | km/H | 2.8 |
Grade ability | % | 70(35°) |
System rated pressure | Mpa | 21.5 |
Ground Pressure | Kpa | 30 |
Tracking Force | Kn | 15.2 |
Bucket Digging Force | kN | 18 |
Arm Digging Force | kN | 11 |
Fuel Tank Capacity | L | 17 |
Hydraulic Tank Capacity | L | 18 |

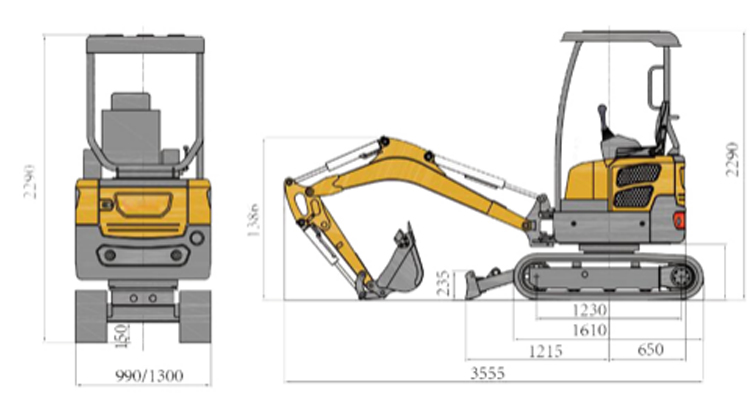

Overall Dimensions
Overall Length | mm | 3555 |
Overall Width | mm | 990/1300 |
Overall Height | mm | 2290 |
Ground clearance | mm | 150 |
Undercarriage width | mm | 990 |
Dozer Blade | mm | 1050×240 |
