I.Features&Benifits
1. YTO LR4A3Z-22 turbo engine or CUMMINS 4BTA3.9-C80, YJ280 type torque converter and ZL20 gearbox, ZL25 heavier type driving axles, ratio decreased, traction increased 20%, more powerful and work more efficiently.
2. Air over hydraulic brake, 15/70-18 tyre , automatic leveling function.
3. Strengthed frame, more robust, tires have high adhesion.
4. Bucket motherboard with wear-resistant 400 steel plate made by Wugang, very durable;
5. Overall length ≤5.2 meters, the whole width ≤1.8 meters, Overall height ≤1.9 meters, more narrower, lower and shorter, suitable for ultra-low, ultra-narrow aisle works.
6. Standard with exhaust purification device ( imported three way catalytic converter; optional wet brake axle)
II. Specification

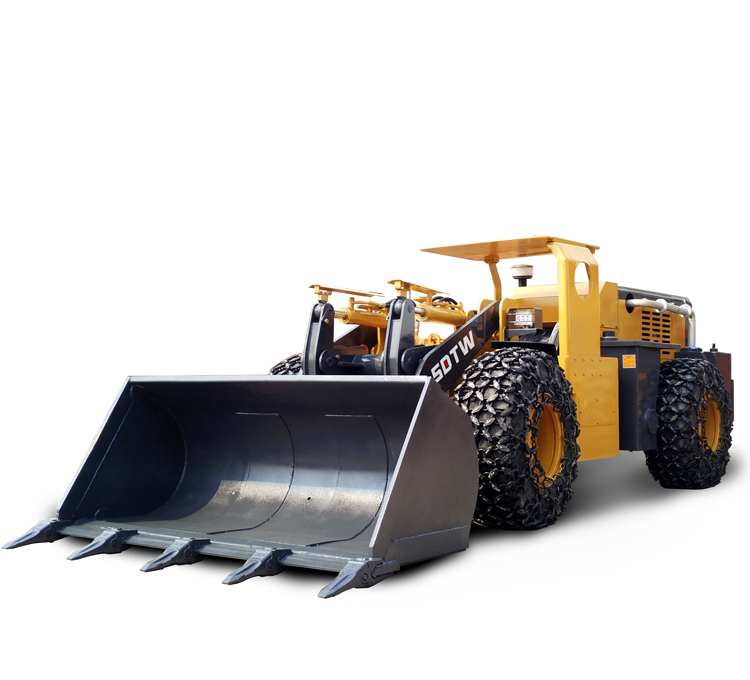

UL908 (Sit sideways) | |
Main specifications | |
Bucket capacity (m3 ) | 0.8 |
Rated load (t) | 2.0 |
Weight (t) | 6.5 |
Lifting time of the arms (s) | ≤4 |
The sum of three items(s) | ≤8 |
Forward gear（km/h） | I 0-5 II 0-13 |
Reverse gear | I 0-5 II 0-13 |
Max. climbing gradient | 15° |
Dimensions | |
Overall dimension (mm) | |
Wheel base (mm) | 2700 |
Wheel tread(mm) | 1440 |
Max. dumping height(mm) | 1740/2200 |
Dumping reach (mm) | 945 |
Diesel engine | |
Engine model | YTO LR4A3Z-22/ CUMMINS 4BTA3.9-C80 |
Engine type | In-line,water-cooling,4-stroke,4cylinder,direct-injection, turbo |
Rated power(kW) | 70/60 |
Rated speed (r/min) | 2200/2200 |
Total exhaust of cylinder(L) | 4.2/3.9 |
Type of starting | Electric start |
Transmission system | |
Torque converter | |
Model | YJ280 |
Type | Single stage, three elements |
Gearbox | |
Model | ZL20 |
Type | Fix counter-shaft, power-shift |
Axle and tire | |
Type of main reducer | Spiral bevel gear, single stage |
Type of final reducer | Single stage planetary |
Size of tire | 15/70-18 |
Working device of hydraulic system | |
Model of working pump | CBGJ2050 |
Nominal displacement(ml/r) | 50 |
Rated pressure(Mpa) | 16 |
Multi-way directional valve | ZL20 |
Pressure(Mpa) | 17 |
Rated flow(L/min) | 100 |
Steering system | |
Type | Load-sensing hydraulic steering |
Displacement(ml/r) | 250 |
Max input pressure(Mpa) | 16 |
Brake system | |
Type of traveling brake | Air over hydraulic brake |
Type of parking brake | Band brake |
