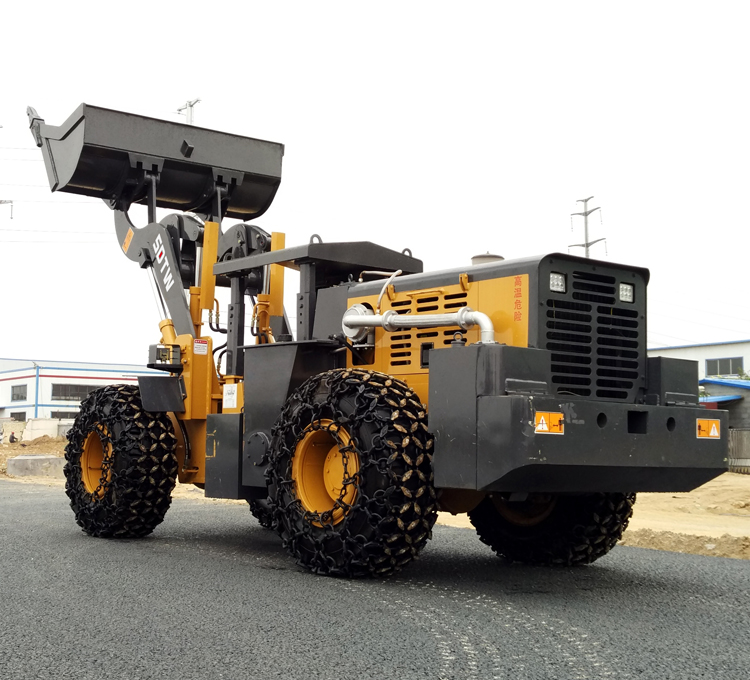

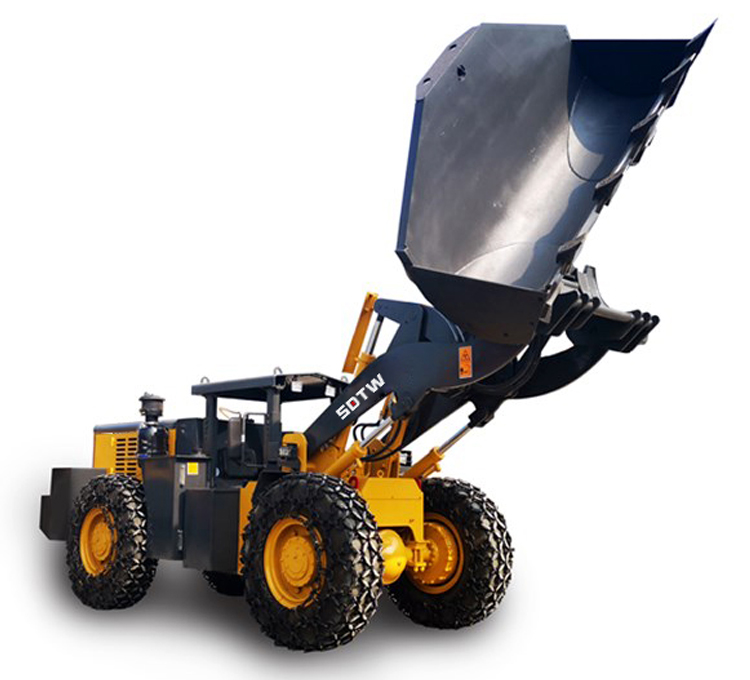

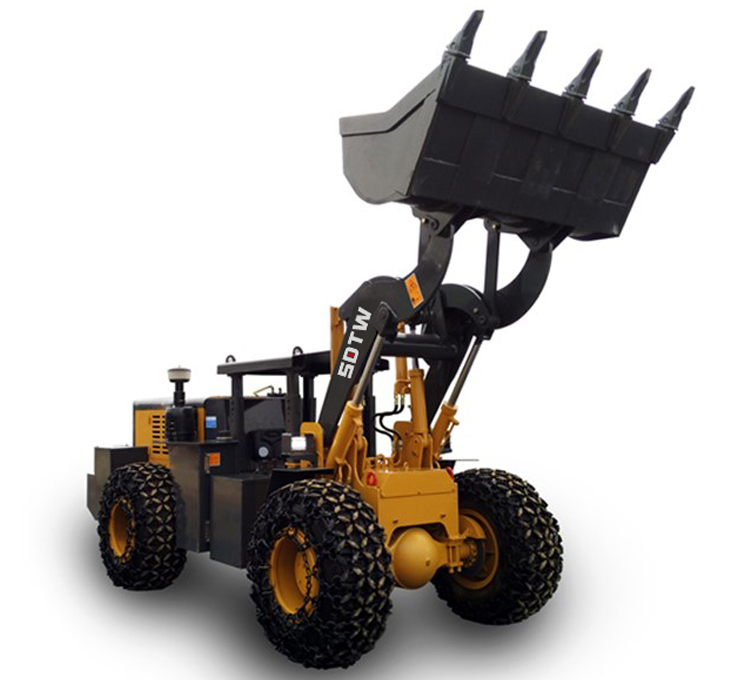

Main specifications

Bucket capacity (m³ )

1.7

1.7

Rated load (t)

3.0

3.0

Weight (t)

10.0

10.0

Lifting time of the arms (s)

≤4

≤4

The sum of three items(s)

≤9

≤9

Forward gear（km/h）

I 0-7 II 0-12.5 III 0- 21 IV 0-35

I 0-7 II 0-12.5 III 0- 21 IV 0-35

Reverse gear

I 0- 14       II 0- 25

I 0- 14       II 0- 25

Max. climbing gradient

15°

15°

Demensions

Overall dimension (mm)

6760×2000×2550/2350

6850×2400×2550/2350

Wheel base (mm)

2700

2700

Wheel tread(mm)

1580

1580

Max. dumping height(mm)

2740

2800

Dumping reach (mm)

1200

1200

Diesel engine

Engine model

YUCHAI YC6J125Z-T20

YUCHAI YC6J125Z-T20

Engine type

In-line,water-cooling,4-stroke, 6 cylinder,direct-injection, Turbo

In-line,water-cooling,4-stroke, 6 cylinder,direct-injection, Turbo

Rated power(kw)

92

92

Rated speed (r/min)

2200

2200

Total exhaust of cylinder(L)

6.5

6.5

Type of starting

Electric start

Electric start

Transmission system

Torque converter

Model

SHANTUI YJ315

SHANTUI YJ315

Type

Single stage, three elements

Single stage, three elements

Gearbox

Model

SHANTUI BYD4208

SHANTUI BYD4208

Type

Fix counter-shaft, power-shift

Fix counter-shaft, power-shift

Axle and tire

YUNYU DZL30

YUNYU DZL30

Type of main reducer

Spiral bevel gear,single stage

Spiral bevel gear,single stage

Type of final reducer

Single stage planetary

Single stage planetary

Size of tire

12.00-24

17.5-25

Working device of hydraulic system

Model of working pump

CBGJ2100

CBGJ2100

Nminal displacement(ml/r)

100

100

Rated pressure(Mpa)

12.5

12.5

Multi-way directional valve

DF32.2

DF32.2

Pressure(Mpa)

20

20

Rated flow(L/min)

250

250

Steering system

Type

Load-sensing hydraulic steering

Load-sensing hydraulic steering

Displacement(ml/r)

400

400

Max input pressure(Mpa)

16

16

Brake system

Type of traveling brake

air-over oil caliper disc brake

air-over oil caliper disc brake

Type of parking brake

Band brake

Band brake
