SDTW CY series scooptram is a compact and lightweight Load Haul Dump (LHD) for vein mining, easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety. The scooptram is full of features to help mines maximize tonnes and minimize extraction costs. It has been engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.

Feature:

1.      Adopting DEUTZ engine made in Germany, Full series model, plenty different options for your special working conditions, parts are easy to get, powerful & low-consumption

2.      Hydrostic transmission system, high efficiency and low energy consumption. Danfoss / Rexroth pump, DANA transmission solution.

3.      The frames are articulated with 38° steering angle

4.      4 wheels driving & braking, SAHR multi-disc wet brake at each wheel.

5.      Hydraulic Joystick control to reduce the labor intensity of the driver.

6.      Canada ECS catalytic purifier with silencer, which greatly reduces air and noise pollution in working tunnel.

Drawing

Technical Specification

Power Train

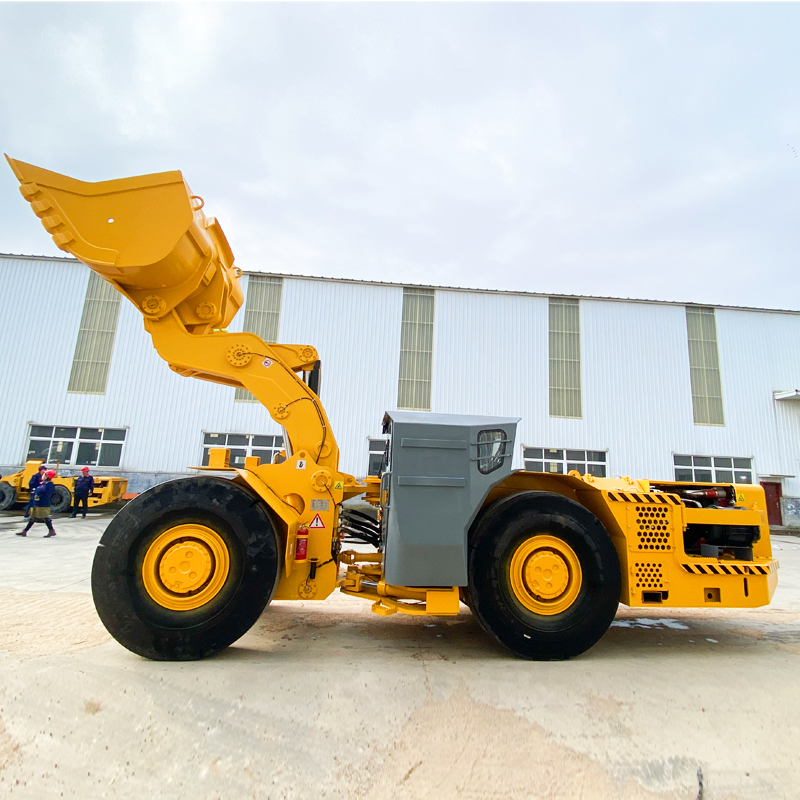

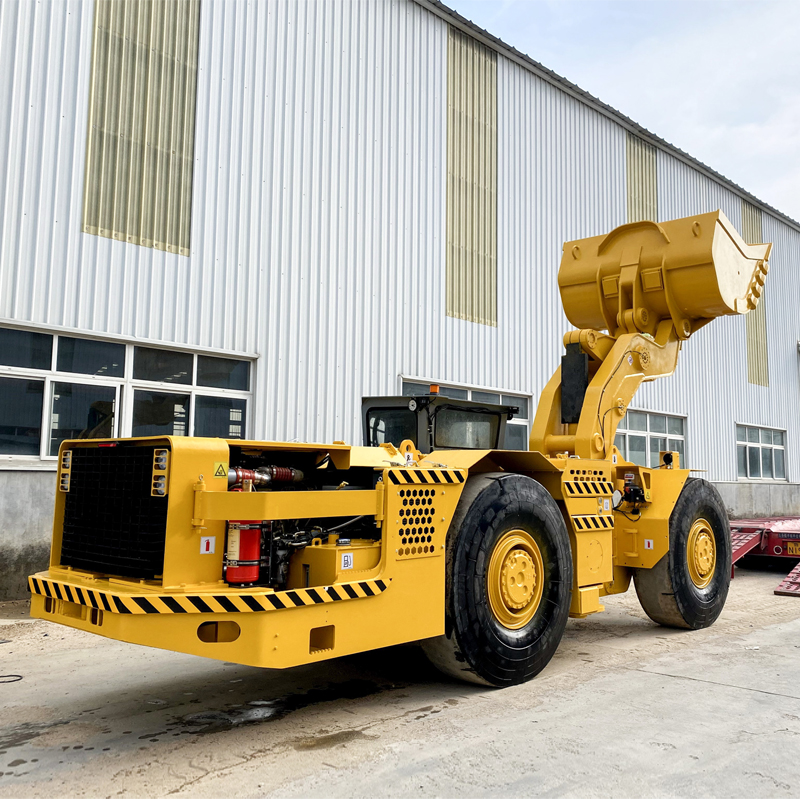

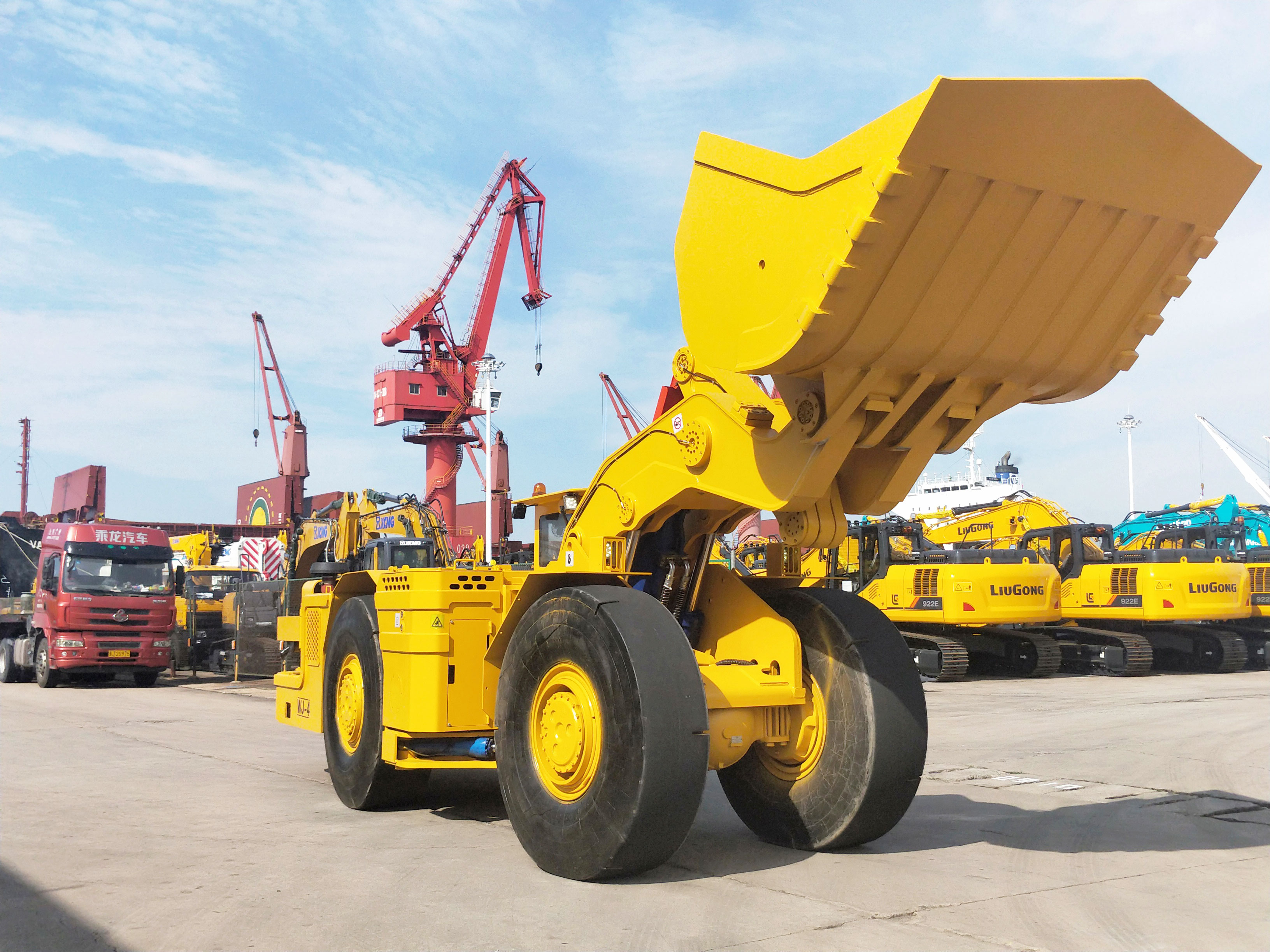

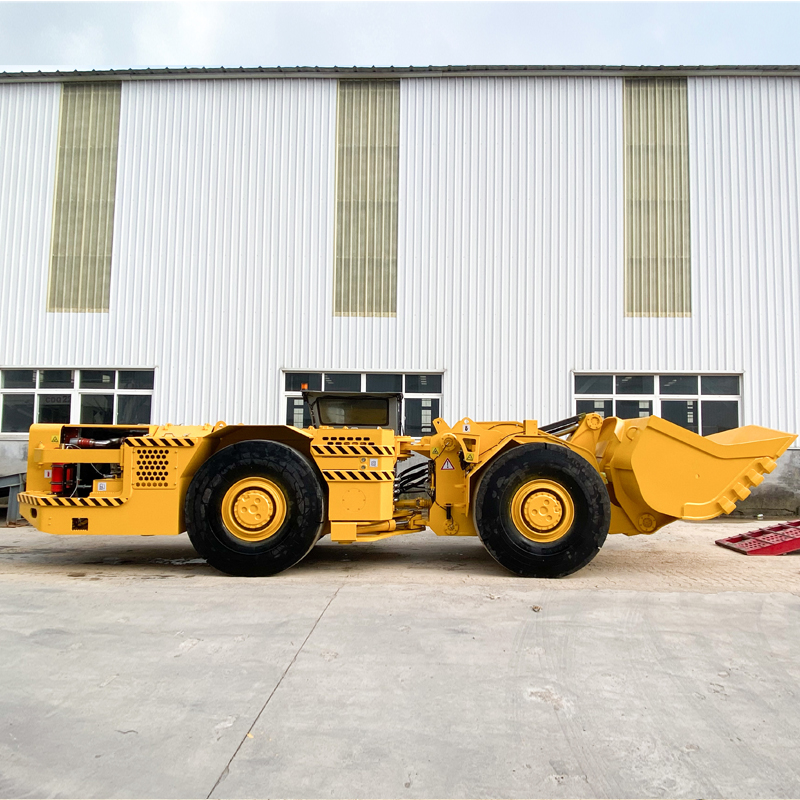

Images
