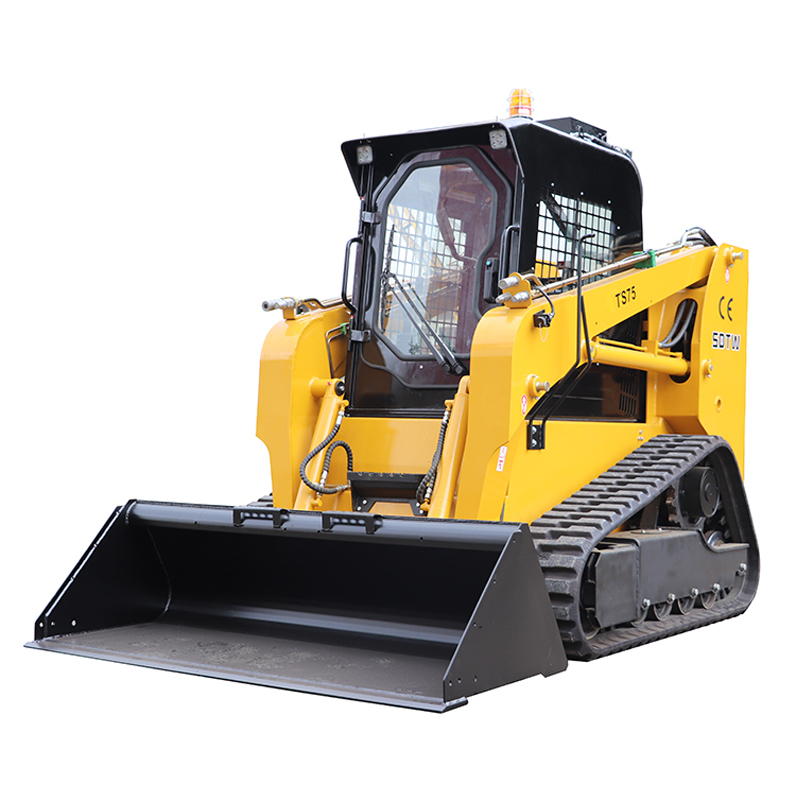

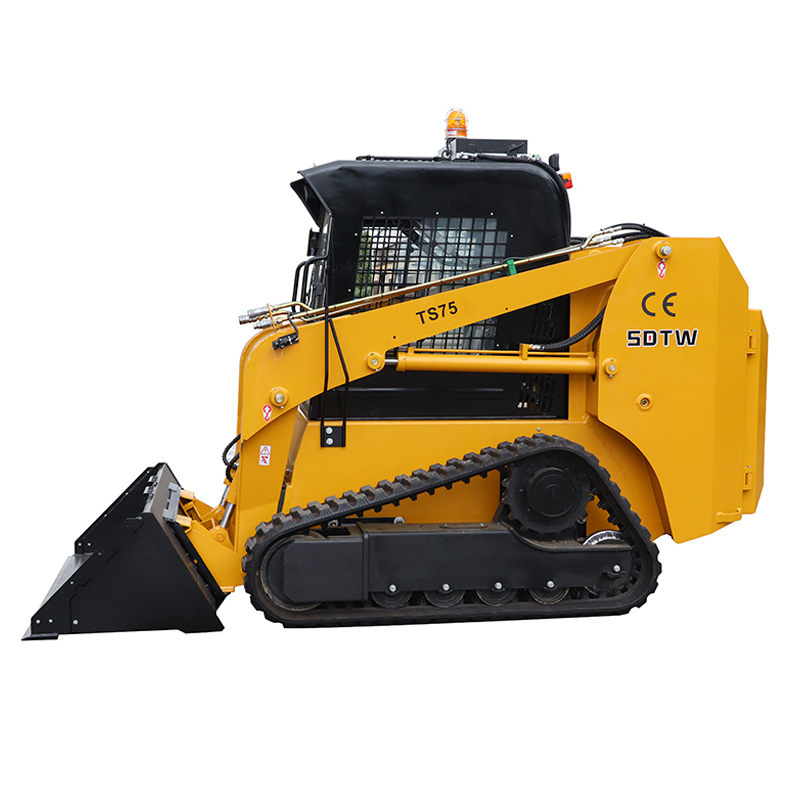

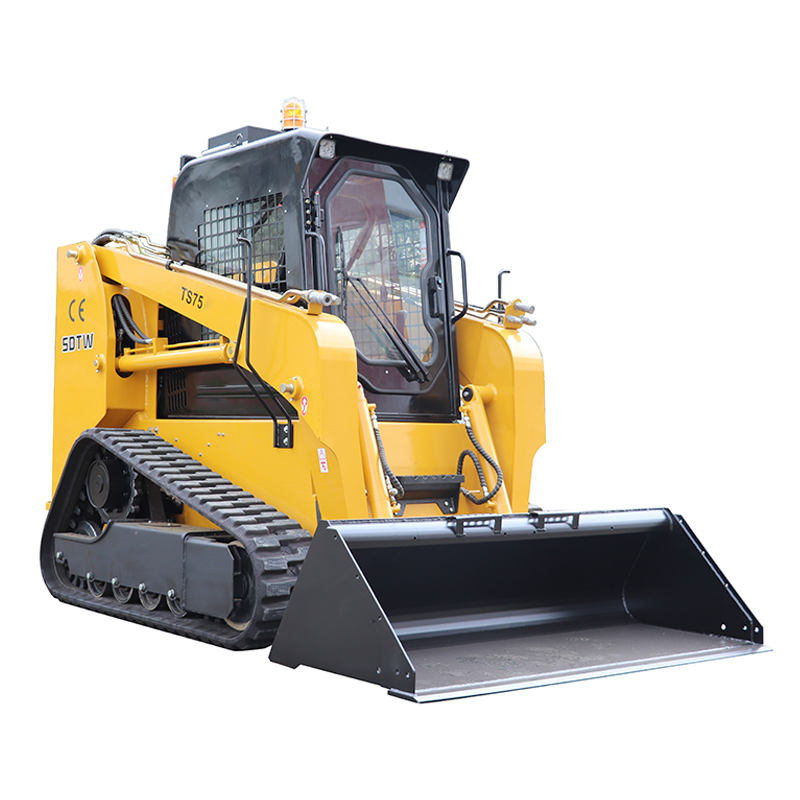

TS75 Track Skid Steering Loader
Main specification：
1. Xinchai /yanmar diesel engine 2. Italy hydraulic pump
3. Italy valve and pilot valve 4. hydraulic control system (Joystick)
5. Close cabin 6. hydraulic brake
7. hydraulic self-leveling system 8. bobcat type quick coupler
9. 74 inch bucket 10. 320x84 rubber track
TS75
Specifications | TS75 |
Rated operating capacity(kg) | 1050 |
Tipping load(kg) | 2100 |
Bucket capacity(m3) | 0.5 |
Operating weight(kg) | 3800 |
Max. travel speed(km/h) | 12/18 |
Hydraulic pump flow(L/min) | 75 |
Fuel tank capacity(L) | 80 |
Overall dimensions (mm) | 3500x1782x2150 |
Height at maximum extension(mm) | 3480 |
Height to bucket hinge pin (mm) | 2900 |
Width with bucket(mm) | 1830 |
Width of track (mm) | 320 |
Length of track (mm) | 1500 |
Ground clearance (mm) | 200 |
Engine | |
Maker/Model | XINCHAI 498T / Yanmar |
Net power | 55KW/2600rpm / 55kw |
Type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
Displacement(L) | 3.17 |
Standard | |
Open-type operator cab | |
Hydraulic joystick controls | |
Standard bucket | |
Auxiliary hydraulic couplers | |
Optional | |
Enclosed operator cab with A/C | |
Attachments：
| Backhoe, Breaker ,Angle blade, Auger, Sweeper, Pallet fork, Combination bucket, Mower, Asphalt cutter, and More |
